Hasmukh Enterprise - Manufacture world class trailers tankers.

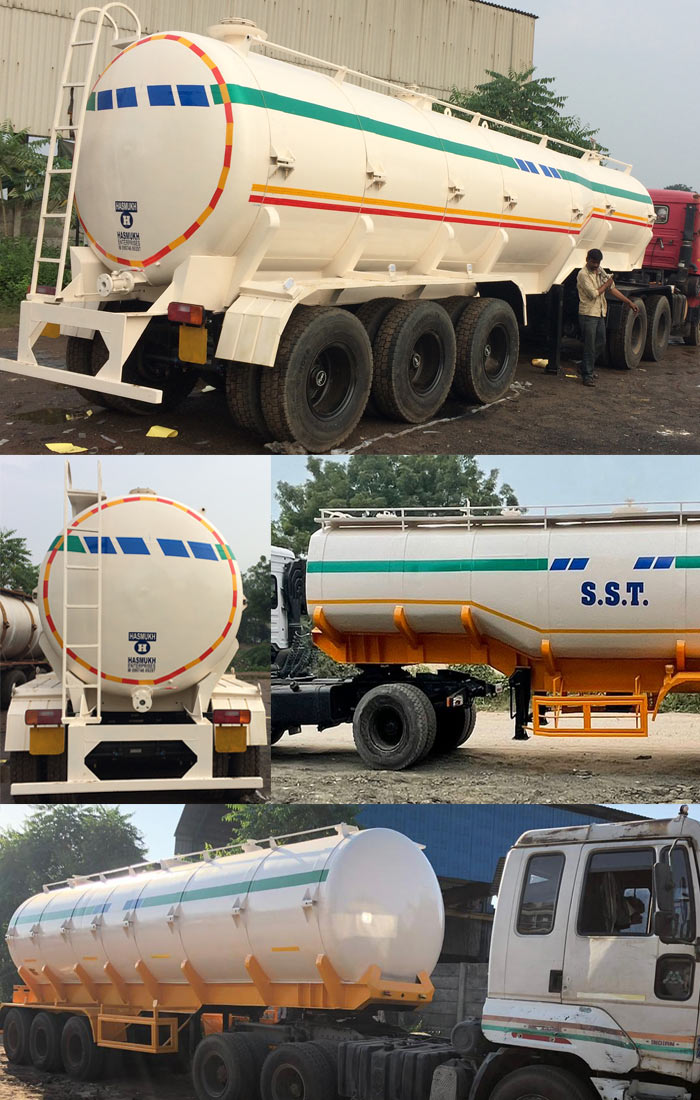

Acid Tankers Trailer Type

Hasmukh Ent Acid Tankers, Trailer tanker

Specification of Trailer Tanker chassis Type
Trucks:- 6 Wheel Tractor 5523

Model HE 25KL
King Pin 50.8 mm Kingpin equivalent to IS 6763 Part I Make :- York or Equivalent (Bottom Removable Type)
Rubbing Plate 16mm Plate
Axle 12 Tones 150 X 150 Square fabricated hollow tube 14mm thickness,
Brakes size 420mm x 180mm,
Standard track length 1850mm ,
Wheel stud 10 X M22 X 335,Greasing cycle 1,00,000km
Manual slack adjusters,
Wheel fixing ISO“U” Bolt M22
Made:-York Model:-5021 Spring Seat ,
Spring clamp plate SG Iron
Leaf Springs LAMINA Suspension with 10 leaves spring
Leaf spring size : 75 mm x 16mm
Leaf spring span: 1130 mm or York specifications
Landing Legs Mechanical Gear Capacity 28000kg/pair
Static load 64000kg/pair , 2 speed train gear box,
Assembly Height 844mm Lift 480mm,
Universal mounting ,Made :- York Model:-YT-28A-2
Front Hanger Bracket Fabricated, York
Back Hanger Bracket Equalizer Hanger Fabricated York
Torque Arm (Fixed)
Balance Rod (Fixed)		 Special forged S.G. Iron casted York
Torque Arm (Adjustable)
Adjustable Balance Rod 		Special Forged Head with Adjustable Screw York
Brake 2 line air brake system with two fabricated air tank drain valve, (Optional spring break actuator on one axle with graduated hand control valve on trailer.)
Relay Valve
Brake Chamber		 RE 6 Emergency relay valve M302930 of TVS- Clayton Ltd. M 22 x 1.5 Reservoir Port, M 14 x 1.5 Ports for service M 16 x 1.5 ports for Emergency and 4 nos. Delivery Relay Valve for Optional Parking brake system, Type 20, Port size: M 16 x 1.5, 4 nos. Spring break chamber of 24/24 type, 2 nos.
Tyre 10.00 X 20, 16PR Amar gold
Wheel Disc 7.5 x 20
Electrical DC Includes tail lamp red reflector convoy lamps on each side as per R.T.O. Rule
Other Specifications :
  • Tanker Material S.S. 304 6mm Plate
  • Tanker Legs Support 6mm 5mm and 125flate 12mm M.S. Plate
  • Inside four compartments three partitions.
  • Tanker partitions Dish End Type
  • Color Golden Yellow & Black, Other Specification is as per our drawings.
  • Lighting System as R.T.O. Rule.
  • Tridem axle Running Gear Air Suspension for Trailer. Two Lift Axle.
  • Running Gear Company M/S York
  • Brake make M/S WABCO . Brake EBS
  • Wheel disc 7.5 x 20 and tyre not Including above price.
  • King pin 50.8 mm Kingpin equivalent to IS 6763 (Make :- York or Equivalent Bottom Removable Type)
  • Landing Legs Mechanical Gear Capacity 28000kg/pair ( Made :- York)

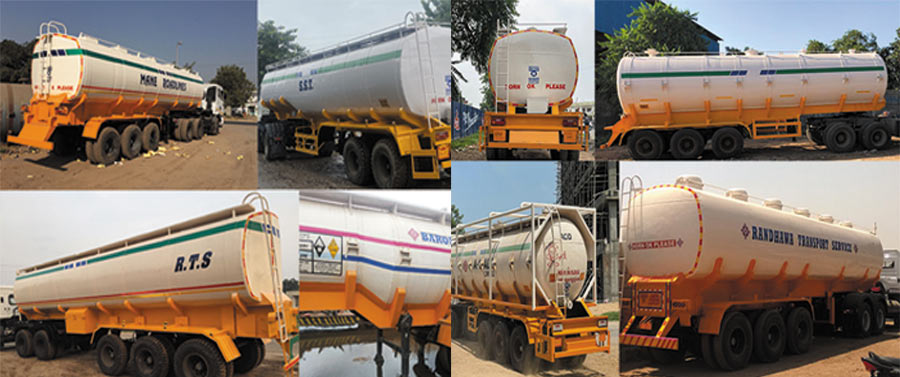

Different Shapes of Tankers



Hasmukh Enterprise

Manufacturer of all kind of Trailers Tankers. Feel free to contact us
