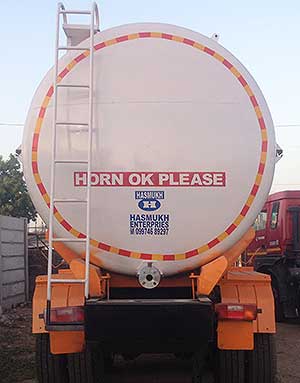

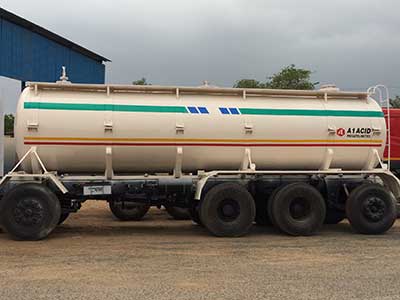

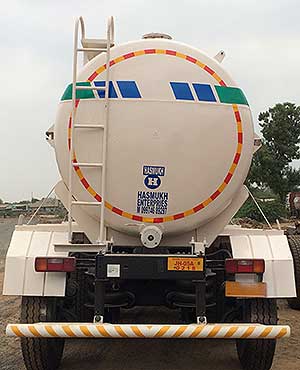

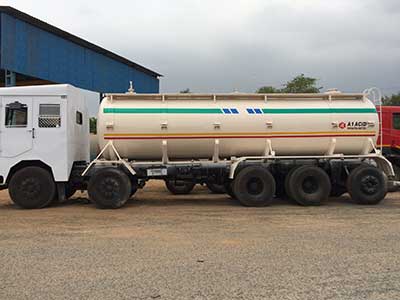

Acid Tankers Chassis Type
 |
 |
 |
 |
Technical Data SS316L 6mm Tanker ACID TANKER CHASSIS TYPE
| Model | HE 25KL |
|---|---|
| Capacity of M.S. 8mm | 25,500/- Litter |
| Gross Volume | 25.5Meter cube |
| Net Carrying capacity | 25KL |
| Method of Loading | By Gravity through Loading Point |
| No. of Main Hole | 1Nos.(450mm Ø) with 2" Connection 1Nos. 2Nos.(200mm) |
| Air Hole | 1Nos.(50mm N. B.) On 8" Connection |
| Method of unloading | By Gravity through unloading 2" Connection |
| Flange Size | All F Table Flange unloading & Top Conne. |
| Gasket | Gasket 3mm |
| Valve | All valve Provide by us local made |
| Joint Efficiency | |
| Material Discharge pipe size | 45mm NB |
| Trucks | Clients’ scope |
| Finish Colour | External Surface:- Coats of zinc primer and two coats of enamel Or customer preference, without any lettering paints |
| Tank Overall Dimensions | Length -8100mm-Shell to Shell Width-2400mm(2340mm Ø) Height-2000mm(Appro.) |
| Tank Main Shell | 6mm ss 316L |
| Tank Dish End | 6mm ss 316L,Inside Partitions Three number |
| Tank Leg Support | 8 mm & Inside Partitions 8mm M.S IS:2062 |
| Tank leg Support Foundations | 70 x 70 x 4.8mm pipe |
| Top Main Hole | 18" |
| Discharge Pipe | ERW Schedule 10 ,50nb or equivalents |
| Discharge Valves | 2" SS 316 Valve |
| Air In-late Vavles | 1" Screw end Valve |
| Tanker | Round Tanker |
| Loading Main Hole Cover | 12mm Flats Ring and Inside 5 mm |
| Top of Tanker walk-way | 300 mm width Checkered Plate with 25 x 3 Patti |
| Packing | 3mm Champion sheet |
| Access Ladders | 1/2” pipe externally positioned on driver side |
| Mud-guard | 1.6 mm thickness sheet with 4mm support |
| Weight | Tanker weight :3700/-Kgs (Approximate Tanker) Tanker Leg Sup.weight :-850/-Kgs (App.) |
