Hasmukh Enterprise - Manufacture world class Waste Segregation Plants.

Trommel Screens A Rotary trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries.It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end. Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum. This tumbling action to size and separate is beneficiala variety of customers including those looking to recover metallics after incineration, to reclaim wood chips in sewage sludge composting, for accurate size separation of difficult to screen materials, in municipal solids waste and resource recovery,and to separate and wash ores, rock, and other fine materials.



Features: Proficient In Both Wet And Dry Applications Trommel Consists Of Concentric End Sections And Beam Design With Bolt-On Screen Plates Perfectly Concentric, Eliminating Vibration Or Wobble Cylindrical Drum Driven By Chain And Sprocket Drive Or Hydraulic System Available In A Variety Of Diameters And Lengths

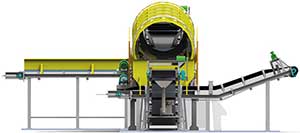

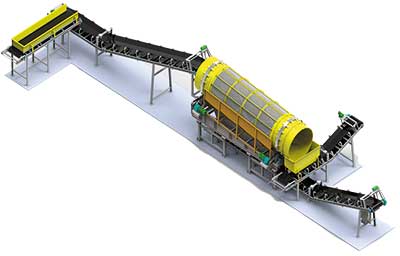

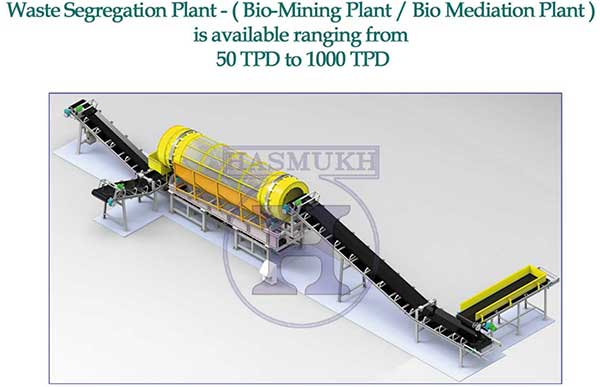

Waste Segregation Plant easy and quick to install, with the following features:

• Weighing arrangement can be directly installed in all Input or output conveyor.
• One coat of epoxy primer and Double coats of epoxy paint
• The all structure is made of rolled section (ISMC / ISA) and welded metallic plates. (IS: 2062)
• Hopper Feeding Height - 2.6 Mtr.
• Req. Connected Load - 41 HP
• Req. land Area for Plant - 8 Mtr * 30 Mtr.
• Power Source - Electronic
• Voltage - 240
• Material - Mild Steel
• Automation Grade - Automatic
• Installation Grade - In Our Scope
• One operator can run the plant
